Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Wrapping Machine
Created with Pixso. 25kg Cement Bag Packing Machine Valve Type Bag Filling Machine
  • name
  • name
  • name

25kg Cement Bag Packing Machine Valve Type Bag Filling Machine

Brand Name: RST
MOQ: 1
Price: 850-3900USD
Delivery Time: 20 days
Payment Terms: t/t
Detail Information
Product Description
Detail Information
Place of Origin:
China
Driven Type:
Electric
Place Of Origin:
Henan, China
Brand Name:
Ruisitong
Dimension(l*w*h):
1100*660*1100mm
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Warranty:
1 Year
Key Selling Points:
High-accuracy, Long Service Life, Automatic
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
PLC, Pressure Vessel, Motor, Engine
Packaging Type:
Valve Bags
Packaging Material:
Plastic Bags, Paper Bags, Woven Bags
Automatic:
Full-automatic
Power Type:
Impeller Rotation
Weight:
170 KG
Packaging Details:
Packaging according to product size.
Supply Ability:
Factory supply
Highlight:

25kg Cement Bag Packing Machine

,

Valve Type Bag Filling Machine

,

25kg valve bagging equipment

Product Description

Automatic 25kg Sand Filling Cement Gypsum Bagging Dry Powder Valve Packing Machine

Product Overview
Air-floating valve mouth packing machine is widely used for packing mineral powders such as cement, gypsum powder, talcum powder, lime powder, zinc oxide, alumina powder, titanium dioxide, dry mortar, dry gypsum, filler, calcium carbonate, sodium sulfate, kaolin, mica, barium sulfate, light calcium, silicon powder, sand casting, pearl stone, silica and carbon black.
PRODUCT SPECIFICATIONS
Rated voltage
220V 50HZ
Working air pressure
0.4-0.6mpa
Packing caliber
60mm
Packaging speed
300-480 bags/hour
Packaging bag form
Valve pocket
Packing weight
5-50kg
Machine size
1500*700*1700mm
Machine volume
1.8m³
Machine weight
360kg
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 0
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 1
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 2


25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 3
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 4
Application Type
Automatic metering and packaging of cement, dry mortar, putty powder, fly ash, lime powder, calcium carbonate, talcum powder, gypsum powder, bentonite, kaolin, lime powder, heavy calcium powder, calcium oxide, coal powder, stone powder, alumina, refractory materials, ore powder and other powders and fine particles.
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 5
Packing and delivery


25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 6
Company information
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 7
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 8
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 9
FAQ
Q1:Which machine do you require? A1: We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Q2: Can you make the machines as buyers’ requests for us? A2:Yes. We have a professional RD team with rich experience to design and manufacturing.
Q3: Will you support oversea service? A3: Yes, our engineer can go to buyer’s factory to install the machine and train the operator for buyer.

Q4: How to find a Packing machine suitable for my product? A4Tell us about your product details and packing requirements. 1. What product do you want to pack? 2. The weight of each bag? 3. Dimension of the bag Q5: Can you send engineer service oversea? A5:Yes, and you need to pay. According to save your cost, we will send you a video of the installation of the machine. Q6. How can we make sure about the machine's quality after we paid? A6:Before delivery, we will send you the pictures and videos of the machines. And also you can visit our factory and check the machine.
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 10
Product Overview



The pneumatic valve mouth packing machine is suitable for the packing of powdery and granular materials with large proportion and good fluidity. It uses compressed air as power, and the compressed air makes the materials in the closed container fluidized through the atomizer, so as to realize the function of conveying materials. By controlling the flow area of the valve, the feeding amount of packaging materials can be controlled to achieve stable packaging accuracy and speed.
PRODUCT SPECIFICATIONS
Model
RST-100
Rated voltage
220V 50HZ
Working air pressure
0.4-0.6mpa
Packing caliber
60mm
Packaging speed
300-480 bags/hour
Accuracy
±0.3kg
Packaging bag form
Valve pocket
Packing weight
5-50kg
Machine size
1500*700*1700mm
Machine volume
1.8m³
Machine weight
360kg
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 11
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 1
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 2


25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 3
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 4
Application Type
Automatic metering and packaging of cement, dry mortar, putty powder, fly ash, lime powder, calcium carbonate, talcum powder, gypsum powder, bentonite, kaolin, lime powder, heavy calcium powder, calcium oxide, coal powder, stone powder, alumina, refractory materials, ore powder and other powders and fine particles.
25kg Cement Bag Packing Machine Valve Type Bag Filling Machine 5

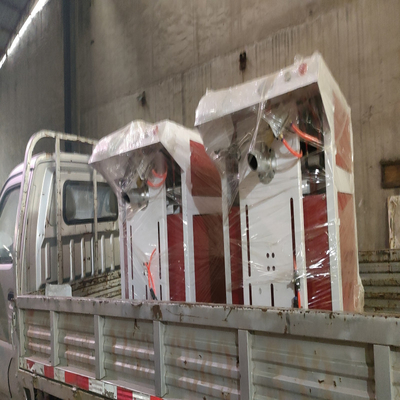

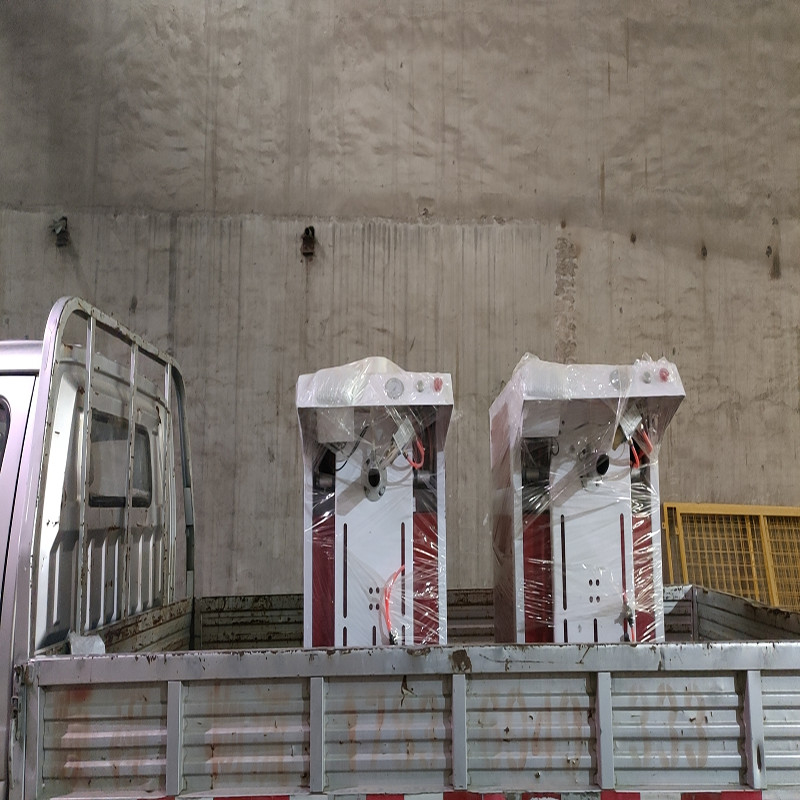

Packing and delivery
