Full-automatic Carton Large Packaging Tray Packaging Scale With Tray Winding And Bundling Stretching Film Turntable

Full-automatic Carton Large Packaging Tray Packaging Scale With Tray Winding And Bundling Stretching Film Turntable

Brand Name:	RST
Model Number:	RST
MOQ:	1
Price:	1300-1750USD
Delivery Time:	20 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Henan,China

Certification:

Product Name:

Automatic Film Winding Machine

Place Of Origin:

China

Driven Type:

Electric

Voltage:

220v/380V (Customizable)

Dimension(L*W*H):

2500*2450*1650mm

After-Sales Service Provided:

Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service

Warranty:

1 Year

Key Selling Points:

High-Accuracy, Long Service Life, Automatic

Machinery Test Report:

Provided

Video Outgoing-Inspection:

Provided

Core Components:

PLC, Pressure Vessel, Motor, Engine

Packing Material:

Plastic Film

Turntable Bearing:

2000kg

Effective Packaging:

1650mm

Rotary Speed:

1-15 Frequency Conversion Speed Regulation 15-25 Stack /H

Weight:

420kg

Packaging Details:

Packaging According To Product Size.

Highlight:

Tray packaging scale with turntable

bundling stretching film turntable tray packaging

Carton Large Tray Packaging Scale

Product Description

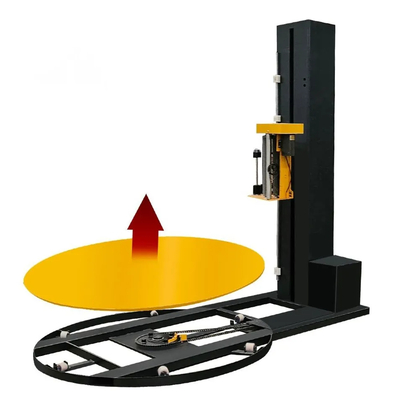

Full-Automatic Carton Large Packaging Tray Packaging Scale with Tray Winding and Bundling Stretching Film Turntable

Product Specifications

Attribute	Value
Product Name	Automatic Film Winding Machine
Place Of Origin	China
Driven Type	Electric
Voltage	220v/380V (Customizable)
Dimension(LWH)	250024501650mm
After-Sales Service	Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Warranty	1 Year
Key Selling Points	High-Accuracy, Long Service Life, Automatic
Core Components	PLC, Pressure Vessel, Motor, Engine
Turntable Bearing	2000kg
Effective Packaging	1650mm
Rotary Speed	1-15 Frequency Conversion Speed Regulation 15-25 Stack /H
Weight	420kg

Product Overview

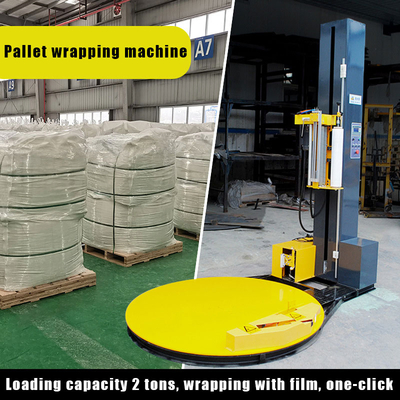

The Electric Driven Film Winding Machine with 1-15 Frequency Conversion Speed Regulation is designed for intelligent logistics storage applications. This stretch winding packaging machine is specially engineered for film wrapping on pallets full of goods, providing stable support during transportation and storage while preventing damage to goods.

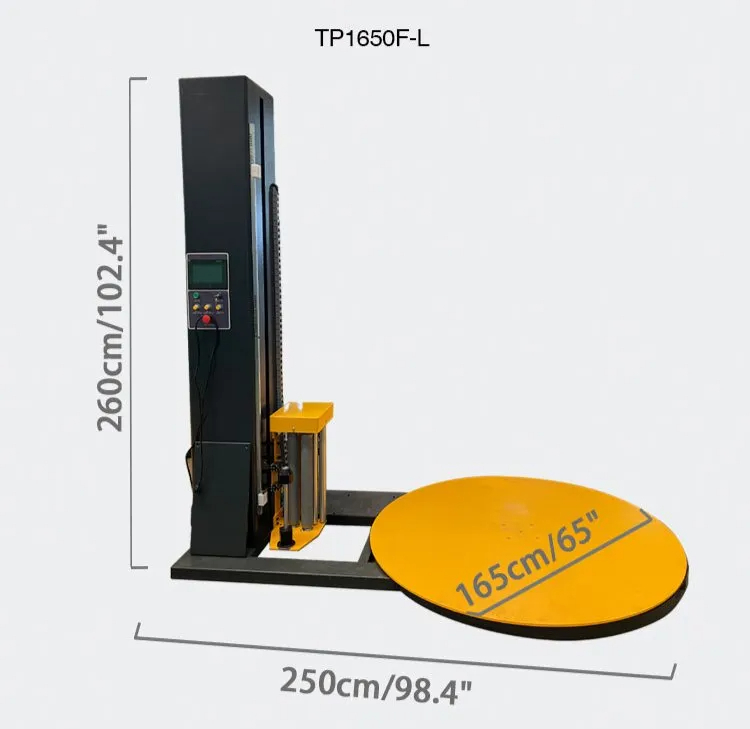

Technical Specifications

Model	Prestretching
Diameter of turntable	1650mm
Winding height	2500mm
Equipment bearing	2000kg
Rotary speed	0-12rpm Adjustable
Turntable height	80mm
Power/voltage	1.32KW / AC220V
Control system	Imported Infineon ABD board, three in one Integrated self-developed frequency converter Wuxi ruisida touch screen
Disc thickness	8mm/Q235b material
Chain	4 points /5 points 12A
Covering cots	φ68
Column box	1.5mm
Floor thickness	8mm
Bearing	Domestically-built
Equipment size	1650mm-2500mm-2450mm
Equipment weight	420kg

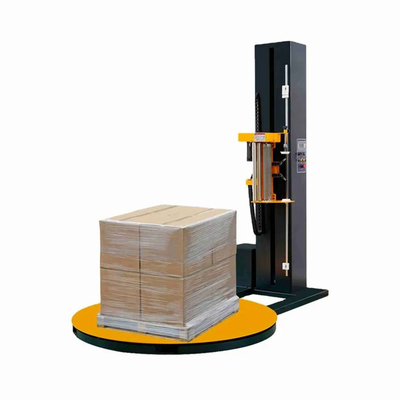

Packaging Finished Product Display

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a manufacturer with a history of more than 10 years and have a professional R&D team. Therefore, we have great advantages in controlling product quality and delivery time.

How long is your delivery time?

When the goods are in stock, it usually takes 3-15 days, and the ordered products can be delivered within 30 days.

What can you buy from us?

Powder packaging machine, pallet robot, packaging and feeding robot and equipment for the whole mortar production line.

Why should you buy from us instead of other suppliers?

Our company is a professional equipment manufacturer. Our products have reached the high-end level of similar products and provided various customized services trusted by users. Our equipment has passed ISO9001 and CE quality inspection.
