Compact Column Palletizing Robot Adjustable Arm For Boxes And Bags

Name: Compact Column Palletizing Robot Adjustable Arm For Boxes And Bags
Brand: Zhengzhou Ruisitong Machinery Equipment Co., LTD
SKU: RST-50B-180
Price: 15000 USD
Availability: InStock

Brand Name:	RUISITONG
Model Number:	RST-50B-180
MOQ:	1
Price:	$15000

Detail Information

Product Description

Detail Information

Place of Origin:

Henan, China

Model:

RST-50B-180

Number Of Axes:

4-axis; Vertical Articulated

Material:

Carbon Steel

Maximum Load:

50kg

Repeat Positioning Accuracy:

±0.2mm

Power:

5KW

Maximum Working Radius:

2000mm

Rotation Angle:

180°

Maximum Palletizing Height:

1.6m – 1.8m

Palletizing Speed:

400 – 500 Cycles/hour

Machine Dimensions (L×W×H):

2500mm × 400mm × 2920mm

Machine Weight:

900kg

Applicable Types:

Bags, Boxes, Barrels, Baskets, And Other Regular Objects

Application Fields:

Building Materials, Feed, Chemicals, Grain & Oil, Food, Daily Chemicals, Alcohol, Beverages, Pharmaceuticals, Home Appliances, 3C Electronics, Etc.

Product Features:

1. Capable Of Dual-line, Dual-station Simultaneous Palletizing And Depalletizing. 2. Simple Operation, High Speed, Compact Footprint, And High Efficiency. 3. Enables Intelligent Handling To Reduce Costs And Improve Productivity.

Highlight:

compact palletizing robot for boxes

adjustable arm palletizer robot

column palletizing robot for bags

Product Description

Product Overview

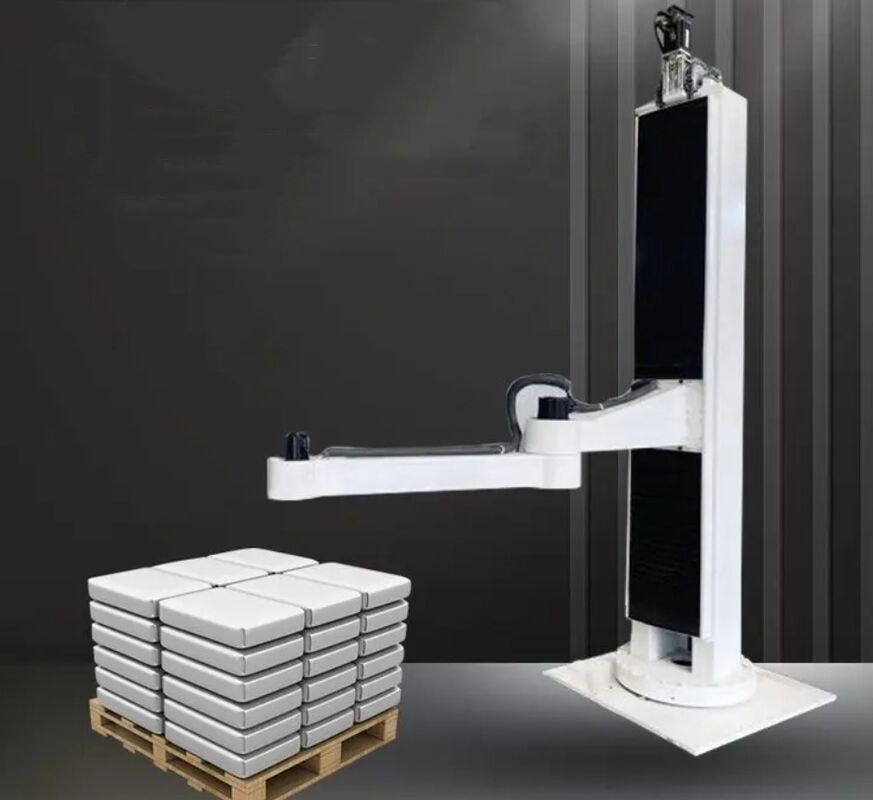

Compact Column Palletizing Robot Adjustable Arm For Boxes And Bags 0

The Compact Column Palletizing Robot is an agile automation solution engineered for operations requiring versatile and space-efficient palletizing. Centered around a sturdy column structure with a fully adjustable robotic arm, this system expertly handles a mix of boxes and bags on a single production line, eliminating the need for multiple dedicated machines.

Technical Specifications

Model	RST-50B-180
Number of Axes	4-axis; Vertical Articulated
Material	Carbon Steel
Maximum Load	50kg
Repeat Positioning Accuracy	±0.2mm
Power	5KW
Maximum Working Radius	2000mm
Rotation Angle	180°
Maximum Palletizing Height	1.6m – 1.8m
Palletizing Speed	400 – 500 cycles/hour
Machine Dimensions (L×W×H)	2500mm × 400mm × 2920mm
Machine Weight	900kg
Applicable Types	Bags, boxes, barrels, baskets, and other regular objects
Application Fields	Building materials, feed, chemicals, grain & oil, food, daily chemicals, alcohol, beverages, pharmaceuticals, home appliances, 3C electronics, etc.
Product Features	1. Capable of dual-line, dual-station simultaneous palletizing and depalletizing. 2. Simple operation, high speed, compact footprint, and high efficiency. 3. Enables intelligent handling to reduce costs and improve productivity.

Key Features & Advantages

Compact Column Palletizing Robot Adjustable Arm For Boxes And Bags 1

Versatile Adjustable Arm: The customizable arm reach and gripper attachment allow for seamless switching between different box sizes and bag types, maximizing application range.
Space-Optimized Design: The column-style robot occupies minimal valuable production floor space while maintaining a large operational work envelope.
Unified Handling Solution: Efficiently consolidates the palletizing of both rigid and flexible packaging formats into one automated cell, reducing complexity and cost.
Rapid Redeployment: Easy reprogramming and arm adjustment facilitate quick changeovers for new products or pallet patterns, enhancing production line flexibility.
Robust & Precise: Built for industrial endurance, ensuring reliable, high-speed operation with precise placement to minimize product damage and waste.

Company Profile

With over 10 years of manufacturing experience, we provide professional solutions tailored to your specific production requirements. Our team offers comprehensive support from equipment selection to after-sales service.

We will recommend the most suitable equipment for your needs with professional knowledge and sincere service, providing the most efficient production solution.
