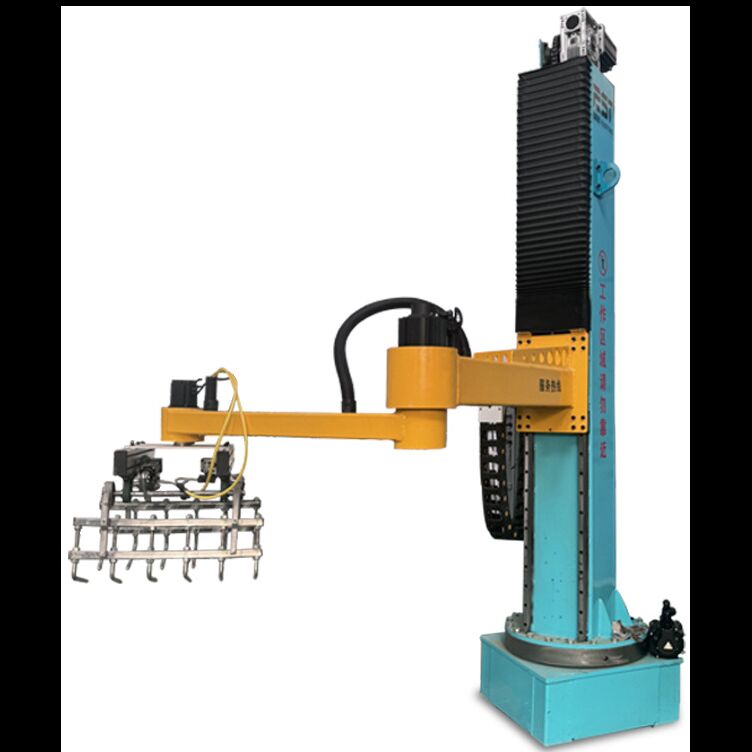

Food Grade Cantilever Palletizer Stainless Steel Quick Changeover Hygienic Design

Name: Food Grade Cantilever Palletizer Stainless Steel Quick Changeover Hygienic Design
Brand: Zhengzhou Ruisitong Machinery Equipment Co., LTD
SKU: RST-50B-180
Price: 15000 USD
Availability: InStock

Brand Name:	RUISITONG
Model Number:	RST-50B-180
MOQ:	1
Price:	$15000

Detail Information

Product Description

Detail Information

Place of Origin:

Henan, China

Model:

RST-50B-180

Number Of Axes:

4-axis; Vertical Articulated

Material:

Carbon Steel

Maximum Load:

50kg

Repeat Positioning Accuracy:

±0.2mm

Power:

5KW

Maximum Working Radius:

2000mm

Rotation Angle:

180°

Maximum Palletizing Height:

1.6m – 1.8m

Palletizing Speed:

400 – 500 Cycles/hour

Machine Dimensions (L×W×H):

2500mm × 400mm × 2920mm

Machine Weight:

900kg

Applicable Types:

Bags, Boxes, Barrels, Baskets, And Other Regular Objects

Application Fields:

Building Materials, Feed, Chemicals, Grain & Oil, Food, Daily Chemicals, Alcohol, Beverages, Pharmaceuticals, Home Appliances, 3C Electronics, Etc.

Product Features:

1. Capable Of Dual-line, Dual-station Simultaneous Palletizing And Depalletizing. 2. Simple Operation, High Speed, Compact Footprint, And High Efficiency. 3. Enables Intelligent Handling To Reduce Costs And Improve Productivity.

Highlight:

stainless steel cantilever palletizer

hygienic food grade palletizer

quick changeover robotic palletizer

Product Description

Product Overview

Food Grade Cantilever Palletizer Stainless Steel Quick Changeover Hygienic Design 0

The Food Grade Cantilever Palletizer is an automated solution specifically engineered for the stringent hygiene and operational demands of the food, beverage, and pharmaceutical industries. Constructed with food-grade stainless steel and featuring a hygienic open-frame design, it enables rapid product changeovers while ensuring compliance with strict sanitary standards for safe and efficient production.

Technical Specifications

Model	RST-50B-180
Number of Axes	4-axis; Vertical Articulated
Material	Carbon Steel
Maximum Load	50kg
Repeat Positioning Accuracy	±0.2mm
Power	5KW
Maximum Working Radius	2000mm
Rotation Angle	180°
Maximum Palletizing Height	1.6m – 1.8m
Palletizing Speed	400 – 500 cycles/hour
Machine Dimensions (L×W×H)	2500mm × 400mm × 2920mm
Machine Weight	900kg
Applicable Types	Bags, boxes, barrels, baskets, and other regular objects
Application Fields	Building materials, feed, chemicals, grain & oil, food, daily chemicals, alcohol, beverages, pharmaceuticals, home appliances, 3C electronics, etc.
Product Features	1. Capable of dual-line, dual-station simultaneous palletizing and depalletizing. 2. Simple operation, high speed, compact footprint, and high efficiency. 3. Enables intelligent handling to reduce costs and improve productivity.

Key Features & Advantages

Food Grade Cantilever Palletizer Stainless Steel Quick Changeover Hygienic Design 1

Certified Hygienic Construction: Built with food-grade stainless steel and smooth, crevice-free surfaces to prevent bacterial harborage, facilitating easy and effective cleaning and sanitization.
Rapid Product Changeover: Implements quick-release mechanisms and programmable presets, allowing for fast switchovers between different product lines, minimizing downtime in batch production.
Sanitary & Washdown-Safe Design: Sealed components and a corrosion-resistant structure withstand high-pressure washdowns, ensuring long-term reliability in wet or demanding cleaning environments.
Product Safety & Integrity: The clean, non-contaminating design protects product quality, making it ideal for direct or secondary packaging handling in sensitive production areas.
Efficient Space Optimization: The cantilever design retains its space-saving footprint while incorporating hygienic features, making it ideal for compact, cleanliness-controlled plant layouts.

Company Profile

With over 10 years of manufacturing experience, we provide professional solutions tailored to your specific production requirements. Our team offers comprehensive support from equipment selection to after-sales service.

We will recommend the most suitable equipment for your needs with professional knowledge and sincere service, providing the most efficient production solution.

Food Grade Cantilever Palletizer Stainless Steel Quick Changeover Hygienic Design 6

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are manufacturers with over 10 years of experience in production line manufacturing.

How can we guarantee quality?

All machines undergo rigorous factory inspection and 72-hour continuous operation testing before delivery. Our quality control department ensures every unit meets strict standards.

How to install the equipment?

We provide detailed manuals and installation videos, supported by our professional after-sales technical team available for guidance at any time.

Why should you buy from us?

As an established manufacturer with our own factory, we offer customized solutions that match your production requirements and site conditions, ensuring cost-effective equipment selection.
